Marsh Nickel Alloys is a leading provider of high-quality Niobium Sheets and Plates in Canberra, Australia. Renowned for their exceptional properties, Niobium Sheets and Plates are highly valued in industries such as aerospace, medical, and chemical processing. These materials offer excellent corrosion resistance, high melting points, and superior strength, making them ideal for applications like jet engine components, medical implants, and chemical storage equipment. With a commitment to delivering reliable and durable alloy solutions, these Niobium products are tailored to meet diverse industrial needs, ensuring optimal performance in challenging environments and maintaining the highest standards of quality and precision.
Marsh Nickel Alloys is a top-notch manufacturer and supplier of high-quality Super Duplex Steel Valves based in Canberra, Australia. Known for their dedication to excellence and precision engineering, they provide durable and corrosion-resistant valve solutions that are perfect for tough industrial settings. With a strong emphasis on quality assurance, cutting-edge technology, and customer satisfaction, Marsh Nickel Alloys serves a variety of sectors, including oil & gas, petrochemical, marine, and power generation. Supported by a talented team and rigorous manufacturing processes, they have earned a reputation as a reliable name for Super Duplex Steel Valves both in Australia and on the international stage.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |

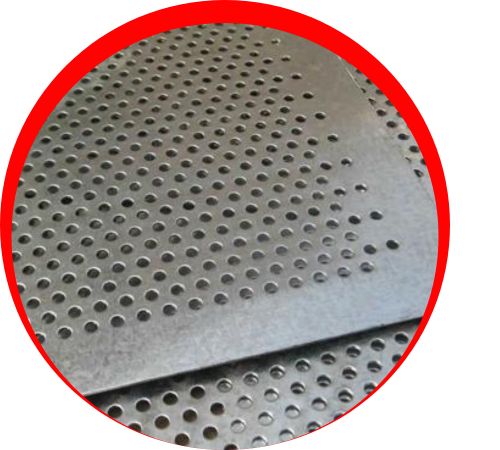

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |

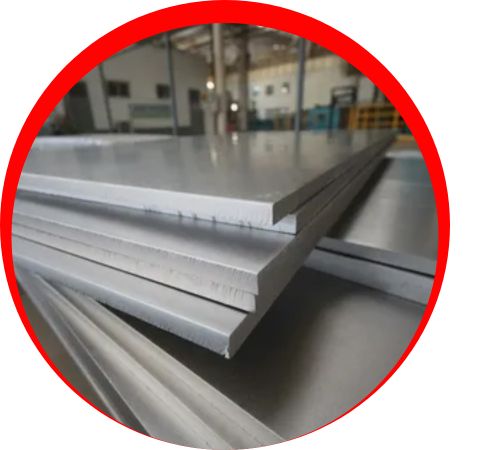

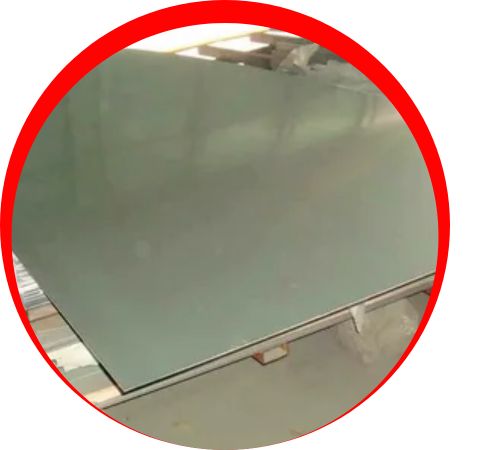

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
The Super Duplex Steel Valves from Marsh Nickel Alloys in Canberra are primarily made up of chromium (24–26%), nickel (6–8%), molybdenum (3–5%), and nitrogen, which gives them outstanding corrosion resistance and strength. These valves boast a high yield strength of around 550 MPa and a tensile strength of up to 800 MPa, along with remarkable toughness and fatigue resistance. Their dual-phase microstructure significantly boosts their durability and ability to resist stress corrosion cracking and pitting. Perfect for harsh conditions, these valves maintain their mechanical integrity even under high pressure and temperature, making them ideal for critical industrial applications.
Contact us to get a quick quote for your requirement.
The Super Duplex Steel Valves produced by Marsh Nickel Alloys in Canberra are widely utilized in industries where strength, corrosion resistance, and durability are essential. You’ll find them in offshore oil rigs, desalination plants, chemical processing units, marine systems, and heat exchangers. These valves are particularly suited for transporting aggressive fluids under high pressure and temperature, thanks to their resistance to chloride stress corrosion and erosion. They are also favored in subsea and onshore pipeline systems, power plants, and fire-fighting systems. With their excellent reliability in extreme environments, Super Duplex Steel Valves guarantee long-term performance and safety.
