Marsh Nickel Alloys is a leading manufacturer and supplier based in Canberra, Australia, specializing in high-quality nickel alloys. Renowned for our precision and reliability, we offer a comprehensive range of Monel 400 sheets and plates designed to meet the rigorous demands of various industries. Monel 400 is known for its exceptional resistance to corrosion and high strength, making it ideal for challenging environments. We ensure top-notch products and services to meet diverse industrial needs.

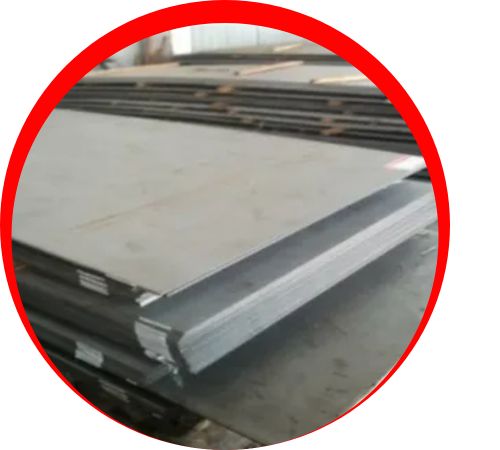

Marsh Nickel Alloys, located in Canberra, Australia, is a reputable manufacturer and supplier of top-notch Monel 400 Sheets and Plates. These products are celebrated for their remarkable strength, resistance to corrosion, and long-lasting durability. By employing cutting-edge manufacturing techniques and high-quality raw materials, the company guarantees that every sheet and plate adheres to global performance and reliability standards. Monel 400 Sheets and Plates from Marsh Nickel Alloys are perfect for demanding applications in marine engineering, chemical processing, oil and gas, and power generation, where exceptional resistance to seawater, acids, and alkaline solutions is crucial.
| Specifications | ASTM / ASME SB 127 |
|---|---|
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
The Monel 400 Sheets and Plates are primarily made from a nickel-copper alloy, which provides outstanding corrosion resistance in seawater, hydrofluoric acid, and caustic environments. They boast impressive mechanical properties, including high tensile and yield strength, toughness, and ductility, even in sub-zero temperatures. Additionally, these sheets and plates offer excellent resistance to stress corrosion cracking, oxidation, and pitting in both oxidizing and reducing conditions. Their remarkable weldability, machinability, and formability make them ideal for complex fabrication and engineering needs.
Contact us to get a quick quote for your requirement.
Monel 400 Sheets and Plates are extensively utilized in industries that require high corrosion resistance and mechanical strength. In the marine and offshore sectors, they find applications in shipbuilding, seawater handling systems, and heat exchangers. The chemical and petrochemical industries rely on them for process vessels, storage tanks, and piping systems that handle corrosive media. They are also employed in oil and gas refineries, as well as in the manufacturing of pumps and valves, and in power plants. The combination of toughness, durability, and corrosion resistance makes Monel 400 Sheets and Plates a go-to choice for critical industrial applications.
