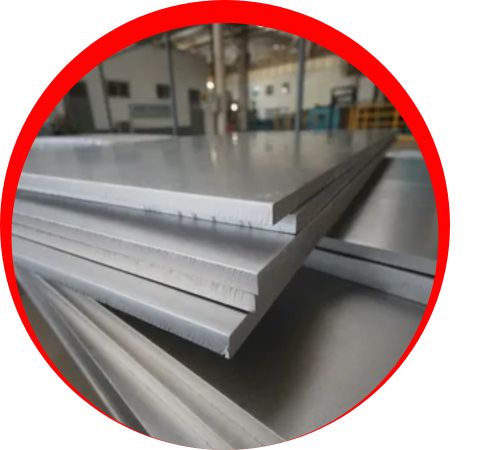

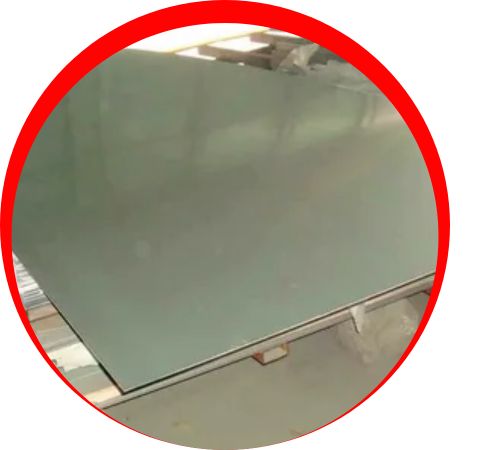

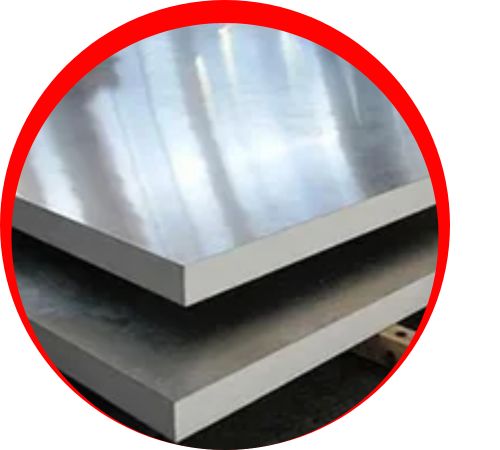

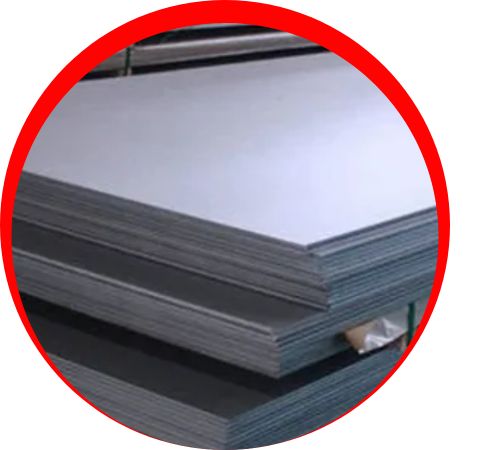

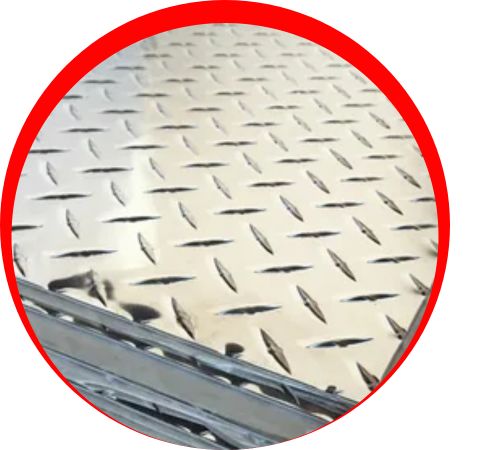

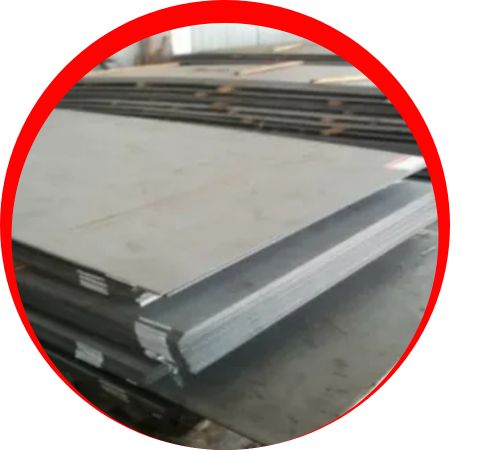

Marsh Nickel Alloys, located in Canberra, Australia, has made a name for itself as a top-notch manufacturer and supplier of Inconel 690 Sheets and Plates, catering to clients in Dubai, UAE. The company is well-known for its dedication to quality, precision engineering, and on-time delivery. These sheets and plates are crafted to meet the rigorous demands of industries that need exceptional resistance to heat, corrosion, and oxidation. Marsh Nickel Alloys employs cutting-edge manufacturing technology and strict quality control measures to ensure that every product meets international standards, delivering outstanding performance even in tough environments.
| Standards : | ASTM B168 / ASME SB168 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 690 | 0.05 max | 0.5 max | 0.5 max | 0.015 max | 0.5 max | 7 – 11 | Remainder | 27 – 31 |
| Element | Tensile Rm | Tensile Rm | R.p. 0.2% Yield | R.p. 0.2% Yield | Elongation (2” or 4D gl) |
| Inconel 690 | 86 ksi (min) | 590 MPa (min) | 35 ksi (min) | 240 MPa (min) | ≥30 % (min) |
At Marsh Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 690 Sheets and Plates in Canberra, Australia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Australia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
You’ll find Inconel 690 Sheets and Plates widely utilized in sectors like chemical processing, nuclear power, and marine engineering. They play a vital role in heat exchangers, steam generators, gas turbines, and furnace components, where resistance to oxidation and thermal stress is essential. The high nickel content of the alloy ensures stability in aggressive environments, such as those containing sulfur, while its corrosion resistance helps extend service life in high-temperature processes. Thanks to these remarkable qualities, Inconel 690 continues to be a go-to material for applications that demand performance, safety, and longevity.
