Marsh Nickel Alloys, based in Canberra, Australia, is proud to support the demanding specifications of a Titanium Grade 5 Tube Fittings Manufacturer in Canberra, Australia. We understand that such high-performance manufacturing requires a supply chain built on reliability and deep material expertise. From our operations in Australia, we provide the consistent quality and traceability needed for producing components destined for the world’s most critical applications, ensuring our partners in Canberra have the superior raw materials necessary to meet their exacting standards.
The exceptional performance of Titanium Grade 5 stems from its unique composition, primarily a blend of titanium, 6% aluminium, and 4% vanadium. This alloy delivers a remarkable strength-to-weight ratio that far surpasses pure titanium, alongside outstanding corrosion resistance. It maintains these robust mechanical properties, including excellent fatigue strength and good weldability, even under elevated temperatures. This combination makes it an ideal material for tube fittings that must perform reliably in challenging environments where failure is not an option.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |

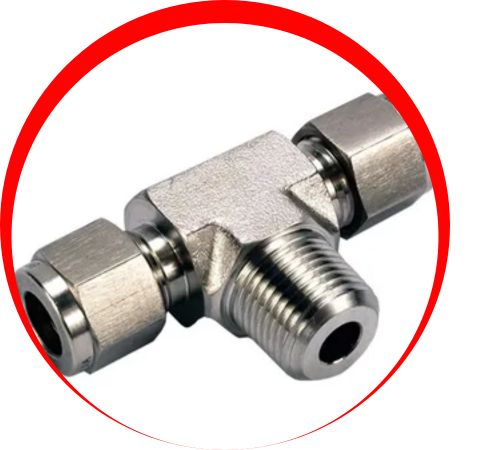

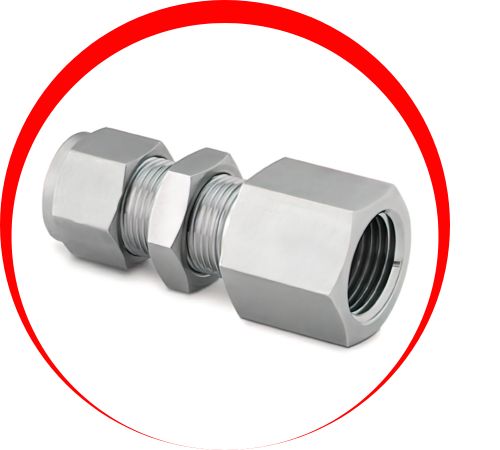

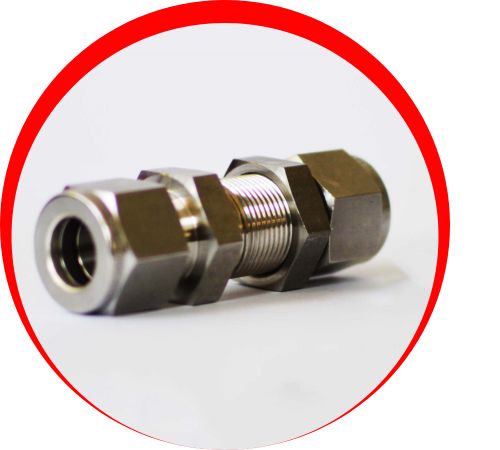

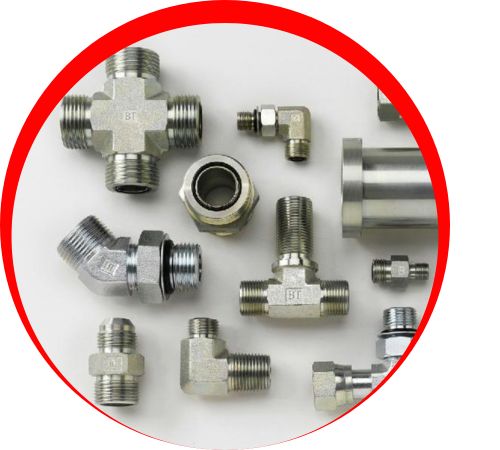

| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
These high-grade titanium fittings are indispensable in sectors where integrity is paramount. You’ll find them in the harsh, corrosive environments of offshore oil and gas platforms, within the high-pressure hydraulic systems of aerospace engineering, and in critical chemical processing plants. Their biocompatibility also makes them a preferred choice for medical and pharmaceutical applications. Essentially, wherever extreme conditions demand a fitting that is both incredibly strong and highly resistant to corrosion, Titanium Grade 5 provides a trusted and long-lasting solution for complex industrial challenges.
Contact us to get a quick quote for your requirement.
Titanium Grade 5 tube fittings are widely used in aerospace, marine and high performance automotive applications due to their excellent strength and light weight Important in applications requiring high corrosion resistance in aircraft systems, sec so equipment and medicine. In addition, excellent fatigue resistance and thermal stability make them suitable for high-stress environments. These materials are used in medical devices and sporting goods, where strength and durability are important.
